Akubela: Redefining Smart Home Technology

Discover The Future Of Smart Home

Akubela revolutionizes smart home systems with a powerful IoT network that seamlessly integrates wired KNX, advanced wireless technologies, and HyPanels as intuitive smart control interfaces. This combination ensures a reliable, efficient, and scalable solution for modern living spaces.
As the Main distributor of Akubela in the UAE, Smart Villa LLC is proud to bring this innovative technology to your doorstep. Whether you're a system integrator or developer, our expertise and Akubela's cutting-edge solutions provide the perfect synergy for creating smarter, more connected homes.

HyPanel's Avalable in two versions:

Wireless HyPanel's
Android-Based All-in-One Touch Screen
Main Futures:
1. Support Zigbee 3.0.
2. Support Wi-Fi integration.
3. Support Bluetooth integration.
4. Intercom Features (support internal communication between screens and outdoor intercom station).






Wired HyPanel's
(KNX and Wireless All In One Device)
Main Futures:
1. KNX TP network.
2. Support Zigbee 3.0.
3. Support Wi-Fi integration.
4. Support Bluetooth integration.
5. Intercom Features (support internal communication between
screens and outdoor intercom station).

Devices:

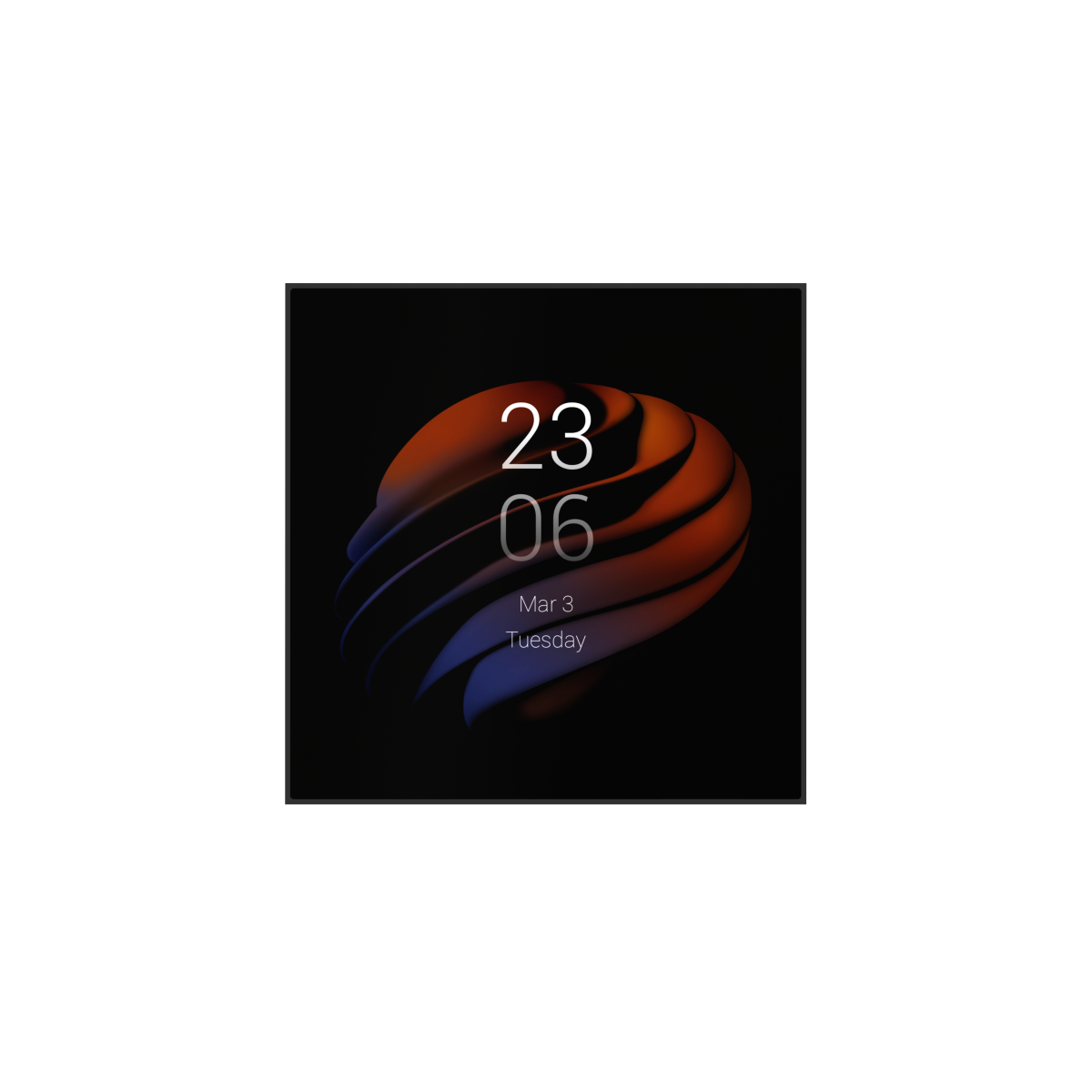

HyPanel

Description
#
The Akubela HyPanel, a smart control panel with an Android 10 operating system. The ALL IN ONE design integrates smart intercom, ZigBee gateway and home automation, and is compatible with a plentiful ecosystem. Multi-modal interaction can be easily used by the whole family, offering the excellent smart home experience.
Features
#
  • Excellent performance with Android 10 system.
  • 4” multi-touch screen with energy-saving mode.
  • 2-gang switch, replace conventional switch.
  • Smart intercom, ZigBee gateway, and home automation ALL IN ONE.
  • Kinds of sensors built-in.
  • EU standard flush mounted box Features.
Specification
#
  • Model Number: PS51-R2-EU
  • Power Supply: 180 ~ 260VAC, 50Hz
  • Built-in Relay Capacity: 16A
  • Output: 2 gang, 1200W total; 800W/gang for resistive; 400W/gang for LED/CFL; Wire Range: 0.5 ~ 2.5mm² (24 ~ 12AWG).
  • Power Meter: Supported.
  • Operation System: Android 10  RAM/ROM: 1GB/8GB.
  • Wi-Fi: IEEE802.11 b/g/n, @2.4GHz/5GHz
  • Bluetooth: Bluetooth 4.2
  • Ethernet Port: 1×RJ45, 10/100Mbps adaptive.
  • ZigBee: ZigBee 3.0
  • ZigBee Sub-Device Limit: 128
  • Microphone: Dual microphones,-42dBV
  • Speaker: Single speaker, 8Ω/1.5W


HyPanel Pro

Description
#
The Akubela HyPanel Pro, a smart control panel with an Android 13 operating system. The ALL IN ONE design integrates smart intercom, ZigBee gateway, and home automation and is compatible with a plentiful ecosystem. Minimalist exterior design, equipped with a 5-megapixel camera with privacy shutter, allowing users to enjoy a higher quality communication experience. Support infrared remote control function and intelligent control of traditional home appliances to achieve a more outstanding smart home experience.
Features
#
  • 8-inch touchscreen.
  • 5-megapixel camera with a privacy shutter.
  • Metal frame with a decorative strip available in various colors and textures.
  • Built in with a 2-gang switch.
  • Built in with multiple sensors.
  • Support infrared remote control.
  • Android 13 OS powered by a high-performance chip.
  • Intercom, ZigBee gateway, and smart home control panel in one device.
Specification
#
  • Model Number: PG71V2-R2-EU.
  • Power Supply: 180 ~ 260VAC, 50Hz.
  • Output: 2 gang, 1200W total; 800W/gang for resistive; 400W/gang for LED/CFL.
  • Wire Range: 1.5 ~ 2.5 mm² (15 ~ 13AWG).
  • Power Meter: Supported.
  • Operation System: Android 13.
  • RAM/ROM: 2GB/16GB.
  • Wi-Fi: IEEE802.11 b/g/n/ac, @2.4GHz/5GHz.
  • Bluetooth: Bluetooth 5.4.
  • Ethernet Port: 1×RJ45, 10/100Mbps adaptive.
  • ZigBee: ZigBee 3.0.
  • ZigBee Sub-Device Limit: 128.
  • IR Control Coverage: Horizontal 125°, vertical 125°, 6m.
  • Microphone: Dual microphones, -38dBV.
  • Speaker: Single speaker, 6Ω/1.8W.
  • Camera: 5-megapixel camera with privacy shutter.

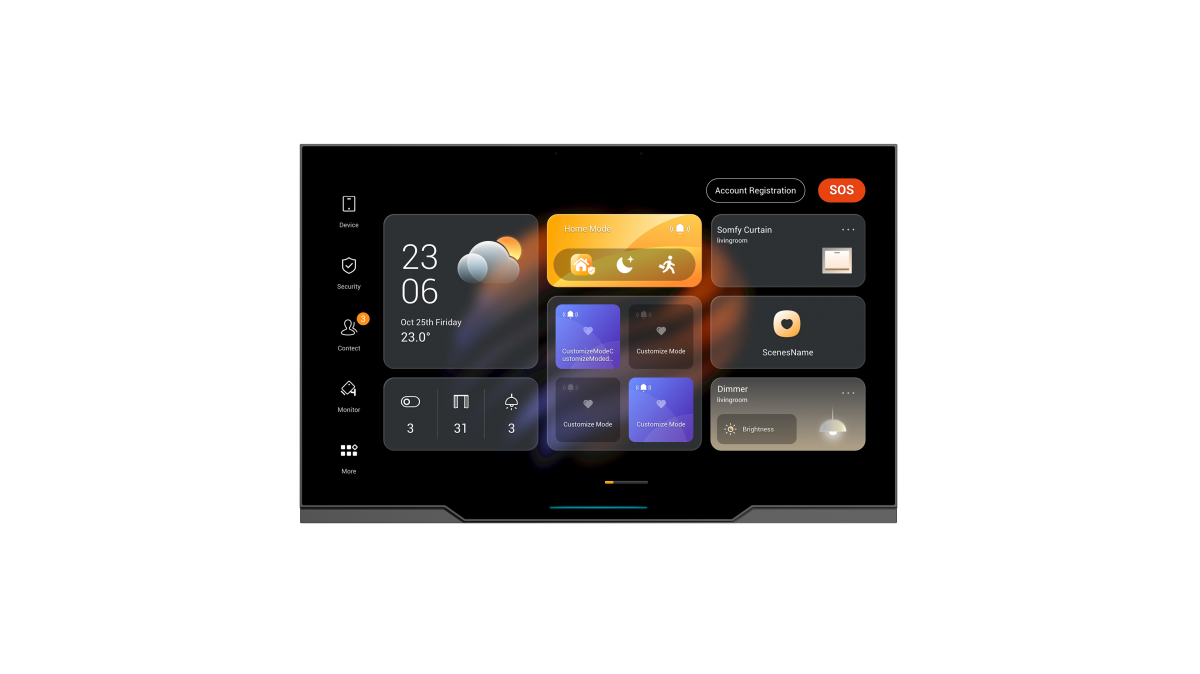

HyPanel Ultra

Description
#
The Akubela HyPanel Ultra, a 10.36-inch smart home control center featuring a high-definition 2000 × 1200 resolution screen with ultra-slim bezels. Its minimalist metal exterior seamlessly integrates high-end aesthetics, delivering a visually stunning experience. Powered by Android 12, it supports various smart home control apps and ac hieves seamless integration between third-party apps and the original interface. It also boasts built-in sensors for tem perature, humidity, proximity, light, enhancing data collection and analysis capabilities. It is designed to bring whole-house smart automation, providing an outstanding user experience.
Features
#
  • 10.36inch touch screen with metal frame.
  • 2K(2000×1200) UHD display.
  • Built in with 6 channels dry contact, 8 digital inputs, RS485 port .
  • Multi networks supported: Wi-Fi 6, Bluetooth 5.0, ZigBee 3.0, etc.
  • Built in with multiple sensors.
  • Android 12 OS.
  • Intercom, ZigBee gateway and smart home control panel in one device.
  • Compatible with various third-party devices and platforms
Specification
#
  • Model Number: PH81-ST.
  • Operation System: Android 12.
  • Power Supply: 12-24VDC.
  • Digital Input: 8 gang, 0-5VDC.
  • Dry Contact Output: 4 gang, 100 ~ 240VAC, rated current: 3A Wire Range: 1.5~2.5 mm² (15~13 AWG) 2 gang, 0-30VDC, rated current: 2A Wire gauge: 0.08 ~ 0.5 mm² (28 ~ 20 AWG).
  • RS485 Port: Supported.
  • RAM/ROM: 4GB/32GB.
  • Wi-Fi: WiFi6, @2.4GHz/5GHz.
  • Bluetooth: Bluetooth 5.0.
  • Ethernet Port: 1xRJ45, 10/100Mbps adaptive.
  • ZigBee: ZigBee 3.0.
  • ZigBee Sub-Device Limit: 128.
  • Microphone: Dual microphones, -26dBFS.
  • Speaker: Dual speakers, 4Ω/2W.

HyPanel supreme

Description
#
The Akubela HyPanel Supreme, a 12.35-inch smart home control center featuring a high-definition 2560 × 1600 resolution screen with ultra-slim bezels. Its minimalist metal exterior seamlessly integrates high-end aesthetics, delivering a visually stunning experience. Powered by Android 12, it supports various smart home control apps and achieves seamless integration between third-party apps and the original interface. It also boasts built-in sensors for temperature, humidity, gesture recognition, light, enhancing data collection and analysis capabilities. It is designed to bring whole-house smart automation, providing an outstanding user experience.
Features
#
  • 12.35-inch touchscreen with metal frame.
  • 2.5K (2560×1600) UHD display.
  • Built in with 6 channels dry contact, 8 digital inputs, RS485 port.
  • Multi networks supported: Wi-Fi 6, Bluetooth 5.0, ZigBee 3.0, etc.
  • Built in with multiple sensors.
  • Android 12 OS.
  • Intercom, ZigBee gateway, and smart home control panel in one device.
  • Compatible with various third-party devices and platforms.
Specification
#
  • Model Number: PHX1-ST.
  • Power Supply: 12-24VDC.
  • Digital Input: 8 gang, 0-5VDC.
  • Dry Contact Output: 4 gang, 100 ~ 240 VAC, rated current: 3A Wire Range: 1.5~2.5 mm² (15~13 AWG) 2 gang, 0-30VDC, rated current: 2A Wire gauge: 0.08 ~ 0.5 mm² (28 ~ 20 AWG).
  • RS485 Port: Supported.
  • Operation System: Android 12.
  • RAM/ROM: 4GB/32GB.
  • Wi-Fi: WiFi6, @2.4GHz/5GHz.
  • Bluetooth: Bluetooth 5.0.
  • Ethernet Port: 1xRJ45, 10/100Mbps adaptive.
  • ZigBee: ZigBee 3.0.
  • ZigBee Sub-Device Limit: 128.
  • Microphone: Dual microphones, -26dBFS.
  • Speaker: Dual speakers, 4Ω/2W.
  • Camera: 5-megapixel camera with privacy shutter.

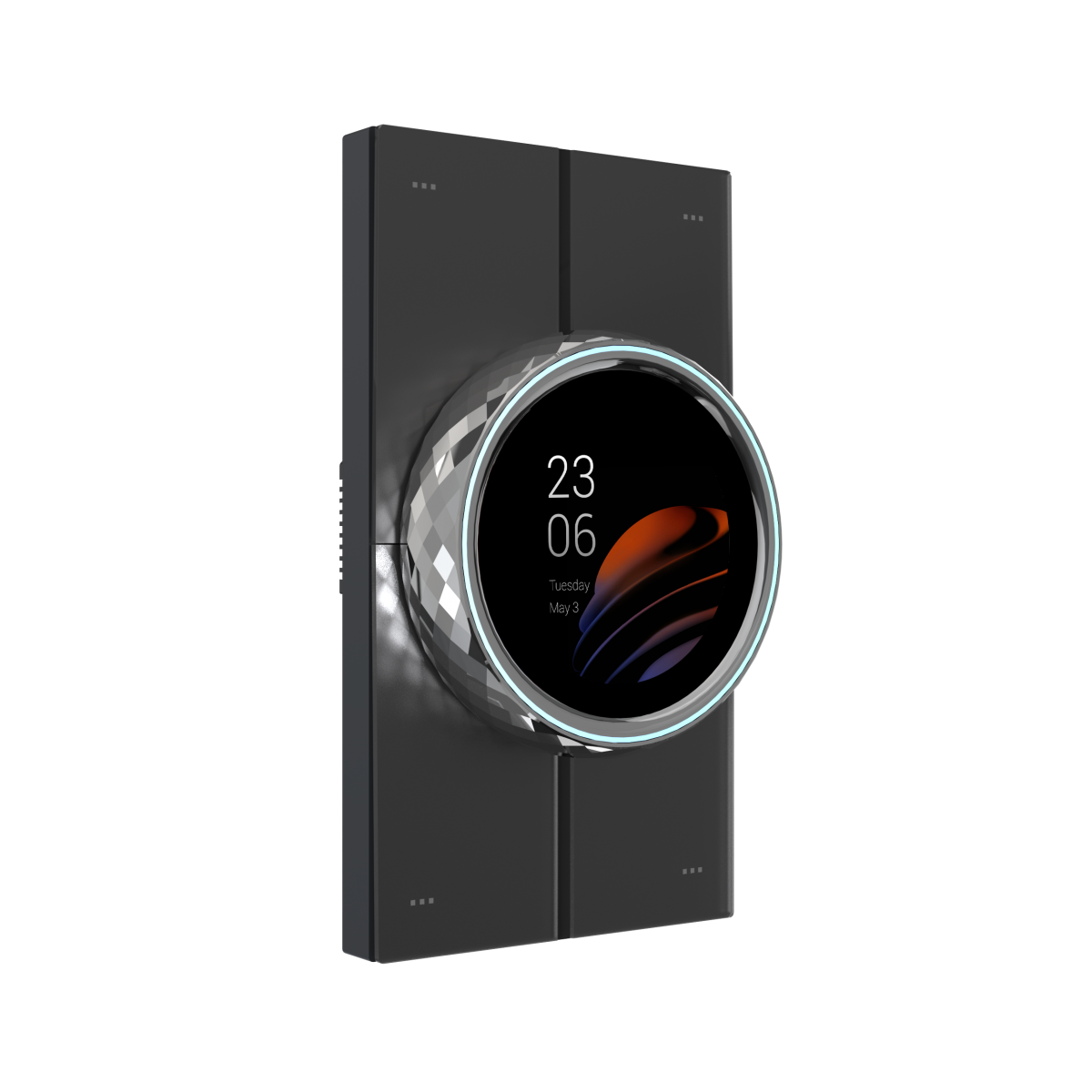

HyPanel Lux

Description
#
The akubela HyPanel Lux, a smart home control panel with an Android 10 operating system. The ALL IN ONE design integrates smart intercom, ZigBee gateway, infrared remote control and home automation, and is compatible with plentiful ecosystem. The copper knob wrapping a circular display with a more than 16 million colors RGB light-strip ring, together with 4 AG glass buttons brings a multi-mode interaction, can be easily used by the whole family, offering the excellent smart home experience.
Features
#
  • 2.1-inch touch screen with 4 AG-glass physical buttons.
  • Infinite metal knobs with damping and ratchet mode.
  • Light ring with more than 16 million colors.
  • Kinds of sensors and infrared remote control built-in.
  • Support horizontal and vertical installation adaptive.
  • Android 10 system in High-powered Qualcomm chip.
  • Smart intercom, ZigBee gateway, home automation—ALL IN ONE.
  • Built in with a 2-gang switch and a digital input port.
Specification
#
  • Model Number: RT61-KNX-EU.
  • KNX Power Supply: 21 ~ 30VDC Rated Current: 12mA/21V.
  • AUX Power Supply: 21 ~ 30VDC Rated Current: 210mA/24V, 170mA/30V.
  • Maximum Power Consumption: 5W.
  • Digital Input: 1 gang 0-5VDC.
  • Dry Contact Output: 2 gang, 100 ~ 240VAC; Rated Current: 4A; Wire Range: 0.75 ~ 1.6mm² (18 ~ 15AWG).
  • Operation System: Android 10.
  • RAM/ROM: 1GB/8GB.
  • Wi-Fi: IEEE802.11 b/g/n, @2.4GHz/5GHz.
  • Bluetooth: Bluetooth 4.2.
  • Ethernet Port: 1×RJ45, 10/100Mbps adaptive.
  • ZigBee: ZigBee 3.0.
  • ZigBee Sub-Device Limit: 128.
  • Microphone: Dual microphones, -42dBV.
  • Speaker: Dual speakers, 8 Ω/1.5 W.
  • IR Control Coverage: Horizontal 90°, vertical 90°, 6m

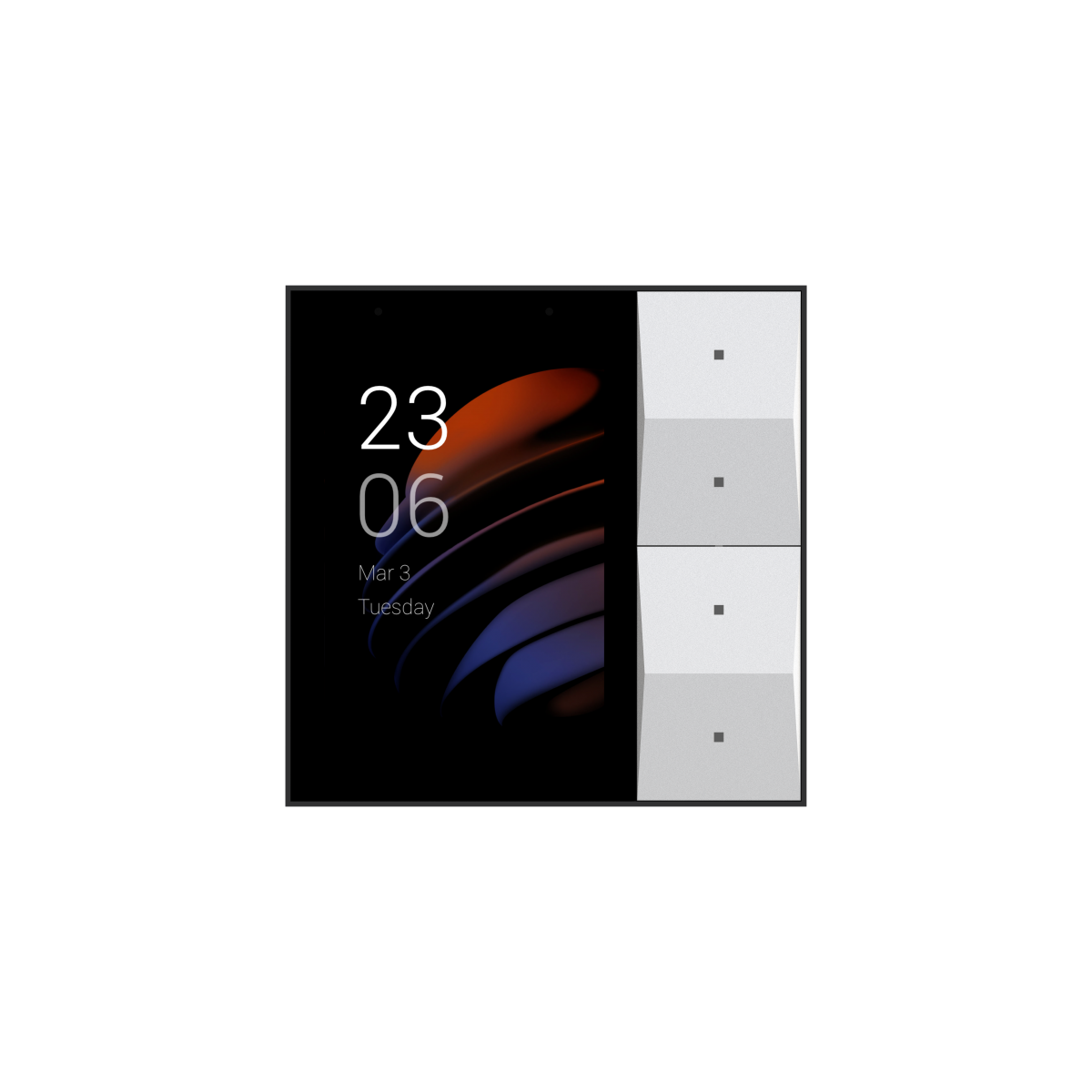

HyPanel Lite

Description
#
The Akubela HyPanel Lite, a smart home center panel with a Linux operating system. The ALL IN ONE design integrates smart intercom, ZigBee gateway, and home automation and is compatible with a plentiful ecosystem. Multi-modal interaction can be easily used by the whole family, offering the excellent smart home experience.
Features
#
  • 3.27“ touch screen with energy-saving mode.
  • 4 metal buttons, suitable for the whole family.
  • 4-gang switch, replace conventional switch.
  • Smart intercom, ZigBee gateway, and home automation ALL IN ONE.
  • Kinds of sensors built-in.
  • EU standard flush mounted box.
Specification
#
  • Model Number: KS41-R4-EU.
  • Microphone: Dual microphones, -26dBFS.
  • Power Supply: 100 ~ 250VAC, 50/60Hz.
  • Built-in Relay Capacity: 10A.
  • Output: 4 gang, 1200W total; 400W/gang/220V; 200W/gang/110V; Wire Range: 0.5 ~ 1.5mm² (22 ~ 14AWG).
  • Operation System: Linux.
  • DDR/Flash: 128MB/256MB.
  • Wi-Fi: IEEE802.11 b/g/n, @2.4GHz.
  • Bluetooth: Bluetooth 4.2.
  • ZigBee: ZigBee 3.0.
  • ZigBee Sub-Device Limit: 32.
  • Speaker: Single speaker, 8Ω/1.5W.

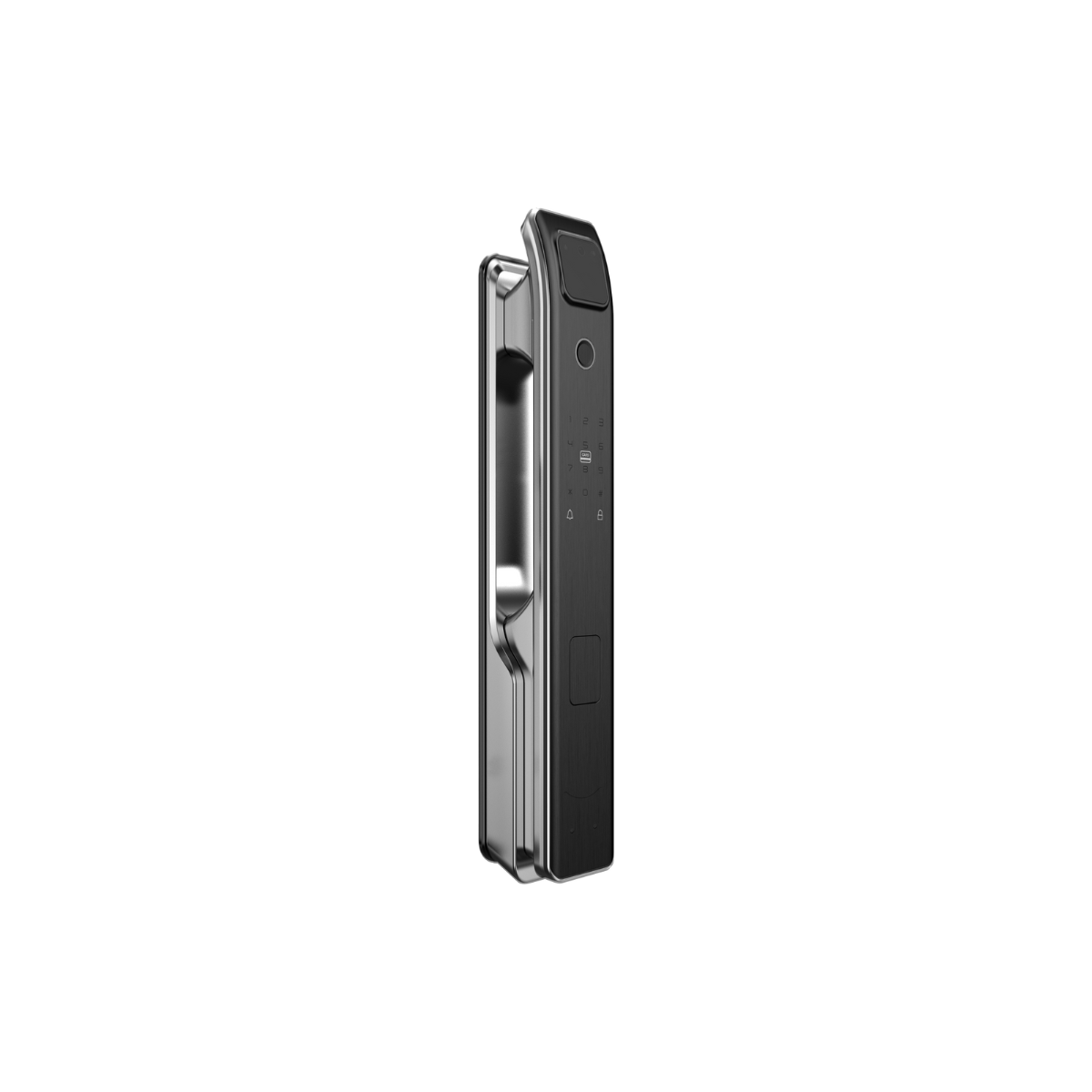

SL 50 Smart Lock

Description
#
The SL50 smart lock features a peephole camera for real-time monitoring of the area outside the door, and complemented by millimeter-wave radar for proactive security. Upon detecting suspicious activity, it promptly sends an alert. Featuring cutting-edge fingerprint recognition, the lock ensures precise and secure access while also supporting various unlocking methods, including passwords, M1 cards, and remote access via the app. With its automatic unlocking function, the SL50 enhances convenience and security, providing a seamless entry experience.
Features
#
  • Wide-angle lens with infrared lighting and a 4-inch HD display for real-time monitoring.
  • Millimeter-wave radar for motion detection and alerts.
  • Multi-screen for remote monitoring and two-way intercom.
  • Built-in doorbell.
  • Fully automatic lock with one-touch open/close.
  • Multiple unlocking methods: Fingerprint, M1 card, password, mechanical key, HyPanel devices, and temporary password.
  • Dualverification function.
  • C-grade anti-theft lock cylinder.
  • Loitering alarm/Tamper alarm/Unauthorized access alarm/Low Battery alert.
  • Integration with smart home systems.
Specification
#
  • Material: Aluminum alloy.
  • Mechanism: Fully automatic door lock.
  • Network: Wi-Fi 2.4 GHz.
  • Display: 4 inches, 480x800.
  • Camera: 2MP / Infrared supplementary light.
  • Lock body: 6068 lock body.
  • Lock cylinder: Grade C.
  • Product dimensions: 418.6*75*56mm (front panel) 421.6*81.2*72.9mm (back panel).
  • Battery capacity: 5000mAh (usable for 6 months/10 unlocks per day).
  • Emergency power: 5V 1A Micro USB.
  • Working voltage: 7.0V~8.4V, low voltage alarm voltage 6.8± 0.2V.
  • Operating environment: -25℃ ~ +70℃.
  • Operating humidity: 20% ~ 93% RH.
  • IP Rating: IP52.
  • Unlock methods: fingerprint/password/IC card/key/mobile APP/HyPanel series, total 250 sets.

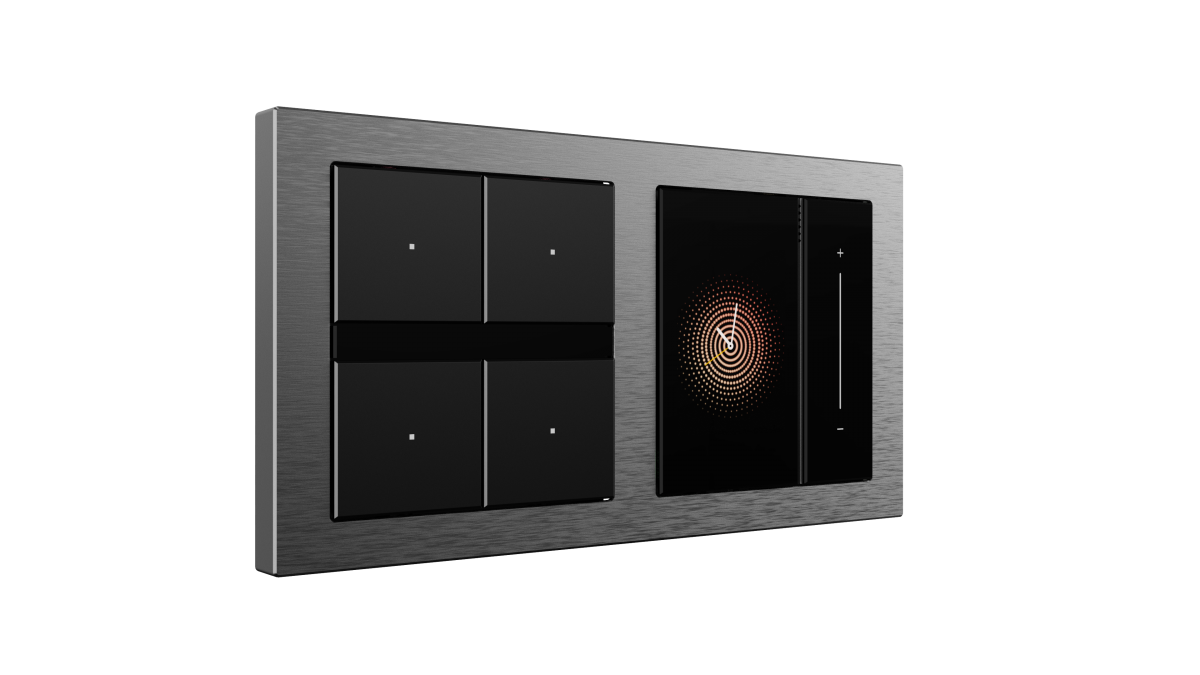

Aura Smart Switch

Description
#
KNX + Non-KNX
Flexibility in Smart Home Design
The Aura Series can be connected directly to any KNX smart systems for rock-solid reliability. Alternatively, it can first link with an akubela HyPanel, which then enables integration with non-KNX smart home platforms. No more brand battles—just seamless control across your entire home.
Features
#
Aura isn’t just smart—it’s a work of art. The frame is crafted from aerospace-grade aluminum, with its surface treated to resist wear, corrosion, and fingerprints. The buttons come in a variety of materials to mirror your décor and are designed to deliver a smooth, tactile feel.
Specification
#

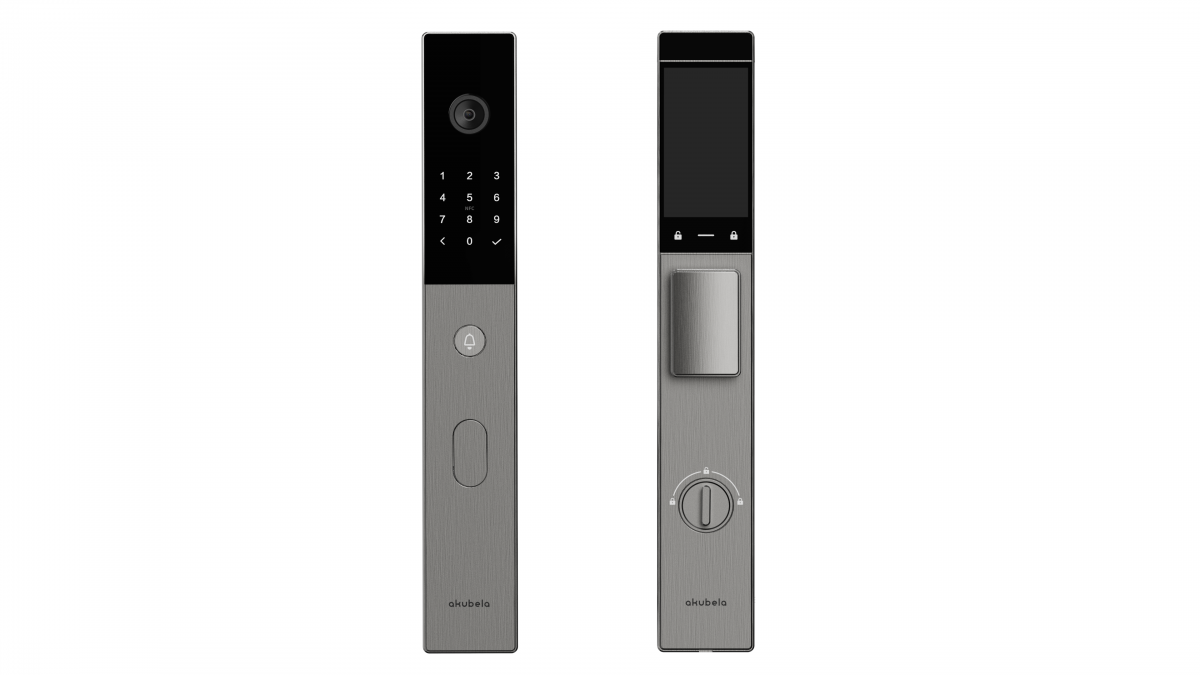

SL 60 Smart Lock

Description
#
This smart lock prioritizes top-tier security and privacy, offering robust protection for users. CE fire resistance certified for emergency reliability, it also features advanced financial-grade 3D facial recognition and palm vein scanning, with up to 10 access methods. Fully developed in-house — hardware, software, and cloud platform — it ensures GDPR compliance, securing user data and privacy.
Features
#
  • CE fire resistance certification.
  • Durable zinc alloy construction with premium electroplating.
  • 24 GHz precision radar for 24/7 monitoring.
  • Long-lasting dual lithium batteries with 9000mAh total capacity.
  • Accurate door state detection for open/close status.
  • Integrated doorbell function.
  • Financial-grade biometric security: 3D facial and palm vein recognition.
  • 10 access methods.
  • 4MPHD camera with 4 infrared lights, supporting low-light full-color and 5m night vision.
  • 5-inch high-definition touch screen.
  • Work with Akuvox door phones, BelaHome app, and HyPanel devices.
  • One-touch integration with smart home systems.
  • Quick reply feature.
  • Child lock function.
  • GDPR-compliant privacy standards.
Specification
#
  • Material: Zinc alloy + 2.5D tempered glass.
  • Dimensions: 460*70*58 mm (front body) and 460*71.5*80 mm (back body).
  • Door Thickness: 40-100mm.
  • Mortise Lock Case: 6068 lock case with door status detection.
  • Mechanism: Fully automated.
  • Connectivity: WiFi @ 2.4 GHz, Bluetooth 3.0.
  • Operating Voltage: 7.4-8.4VDC.
  • Battery Capacity: Main 6000mAh + Auxiliary 3000mAh.
  • Standby Time: 10 months (Based on 10 lock/unlock cycles per day).
  • Emergency Power Supply: 5V/1A, USB Type-C.
  • Camera: 4M pixels, 111° ultra-wide angle.
  • Display Screen: 5-inch, 720P.
  • Speaker: Dual speakers for both front and back bodies.
  • Microphone: Dual microphones for both front and back bodies.
  • Radar: 24 GHz millimeter-wave.
  • Keypad: 1-9, <, √.
  • Indicators:                                           Orange: Recognition in progress                 Green: Recognition success                     Red: Recognition failure.
  • Access Solution: Face (50)/Palm vein (50)/Fingerprint (50)/PIN (50)/IC card (50)/NFC/App/Temporary PIN/HyPanel devices/Mechanical key/Fake PIN code/Dual verification.
  • Alarm Feature: Loitering alert/Multiple failed attempts alarm/Tamper alarm/Low battery alert/Door ajar alarm.
  • Operating Temperature: -25℃～70℃. 0~93% RH.
  • IP Rating: IP65 (front body)/IP52 (back body).
  • Certification: CE fire resistance certification.
